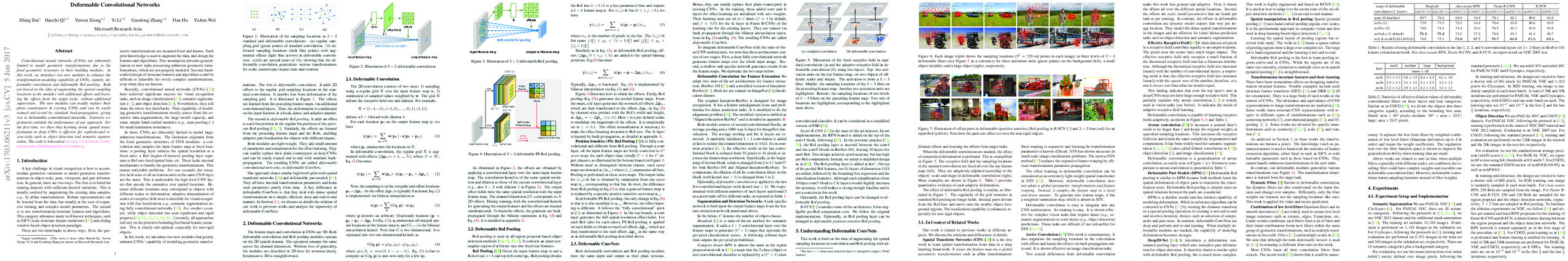

Deformable Convolutional Networks
Abstract: Convolutional neural networks (CNNs) are inherently limited to model geometric transformations due to the fixed geometric structures in its building modules. In this work, we introduce two new modules to enhance the transformation modeling capacity of CNNs, namely, deformable convolution and deformable RoI pooling. Both are based on the idea of augmenting the spatial sampling locations in the modules with additional offsets and learning the offsets from target tasks, without additional supervision. The new modules can readily replace their plain counterparts in existing CNNs and can be easily trained end-to-end by standard back-propagation, giving rise to deformable convolutional networks. Extensive experiments validate the effectiveness of our approach on sophisticated vision tasks of object detection and semantic segmentation. The code would be released.
Preview
Synopsis
Overview
- Keywords: Deformable Convolution, CNN, Object Detection, Semantic Segmentation, Geometric Transformations
- Objective: Introduce deformable convolution and deformable RoI pooling to enhance the geometric transformation modeling capability of CNNs.
- Hypothesis: Learning dense spatial transformations in CNNs improves performance on complex vision tasks such as object detection and semantic segmentation.
Background
Preliminary Theories:
- Convolutional Neural Networks (CNNs): A class of deep learning models that excel in visual recognition tasks but are limited by fixed geometric structures.
- Spatial Transform Networks (STN): A framework that learns spatial transformations but is computationally expensive and less effective for dense predictions.
- Deformable Part Models (DPM): Models that learn spatial deformation of object parts but lack end-to-end training capabilities.
- Atrous Convolution: A method that increases the receptive field of convolutional layers but does not adaptively learn sampling locations.
Prior Research:
- 2012: Introduction of STNs for learning spatial transformations.
- 2015: Development of DPM for object detection, focusing on part deformation.
- 2016: Emergence of atrous convolution, enhancing receptive fields in CNNs for semantic segmentation.
- 2017: Introduction of dynamic filters that adapt based on input features, but limited to filter weights.
Methodology
Key Ideas:
- Deformable Convolution: Introduces 2D offsets to the standard convolution grid, allowing adaptive sampling based on input features.
- Deformable RoI Pooling: Modifies the pooling operation to learn offsets for each bin, enhancing localization for non-rigid objects.
- End-to-End Training: Both modules can be integrated into existing CNN architectures and trained using standard back-propagation.
Experiments:
- Ablation Studies: Evaluated the impact of varying the number of deformable convolution layers on performance across tasks like object detection and segmentation.
- Datasets: Utilized PASCAL VOC and COCO for object detection and semantic segmentation tasks, measuring performance using metrics like mAP and mIoU.
Implications: The design allows for significant performance improvements with minimal additional computational overhead, making it feasible for real-time applications.
Findings
Outcomes:
- Performance Gains: Deformable ConvNets outperformed standard CNNs by significant margins in object detection tasks (e.g., 11% improvement in mAP for Faster R-CNN).
- Adaptive Learning: The learned offsets in deformable convolution layers were shown to adapt to the content of images, improving localization for objects of varying sizes and shapes.
- Effective Dilation: The concept of effective dilation was introduced, indicating that receptive field sizes can be dynamically adjusted based on the input.
Significance: This research provides a novel approach to overcoming the limitations of fixed geometric structures in CNNs, enabling better handling of complex transformations in visual recognition tasks.
Future Work: Suggested exploration of more complex transformations and the integration of deformable modules into other state-of-the-art architectures.
Potential Impact: Advancements in deformable ConvNets could lead to significant improvements in various applications, including autonomous driving, robotics, and real-time video analysis.
