Visualizing and Understanding Convolutional Networks

Abstract: Large Convolutional Network models have recently demonstrated impressive classification performance on the ImageNet benchmark. However there is no clear understanding of why they perform so well, or how they might be improved. In this paper we address both issues. We introduce a novel visualization technique that gives insight into the function of intermediate feature layers and the operation of the classifier. We also perform an ablation study to discover the performance contribution from different model layers. This enables us to find model architectures that outperform Krizhevsky \etal on the ImageNet classification benchmark. We show our ImageNet model generalizes well to other datasets: when the softmax classifier is retrained, it convincingly beats the current state-of-the-art results on Caltech-101 and Caltech-256 datasets.

Preview

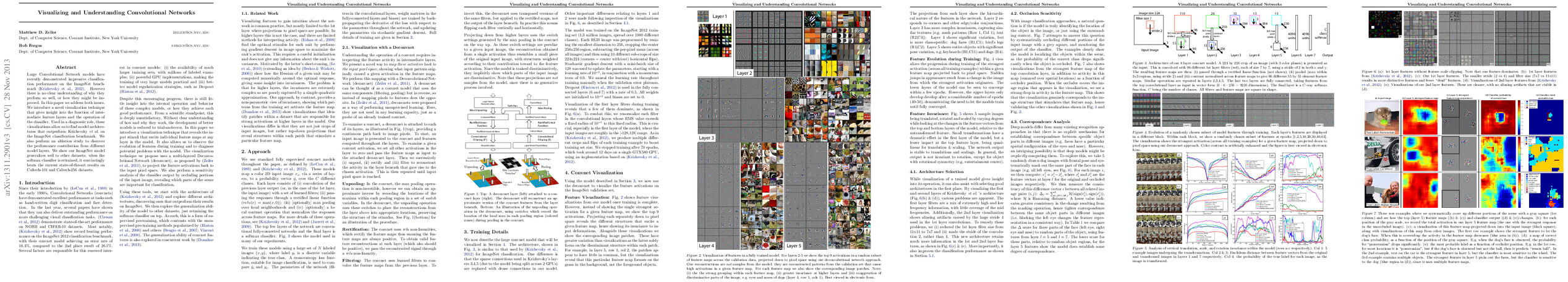

PDF Thumbnail

Synopsis

Overview

  • Keywords: Convolutional Networks, Visualization, Deconvolutional Networks, Image Classification, Feature Analysis
  • Objective: Introduce a novel visualization technique to understand the functioning of convolutional networks and improve their performance.
  • Hypothesis: The internal workings of convolutional networks can be elucidated through visualization, leading to better model architectures and enhanced classification performance.

Background

  • Preliminary Theories:

    • Convolutional Neural Networks (CNNs): A class of deep neural networks primarily used for image processing, which utilize convolutional layers to extract features from input images.
    • Deconvolutional Networks: Networks designed to reverse the operations of convolutional layers, allowing for the visualization of feature activations in the input pixel space.
    • Feature Invariance: The ability of a model to recognize objects regardless of variations in scale, rotation, or translation, which is crucial for robust image classification.
    • Sensitivity Analysis: A method to determine how different input variations affect the output of a model, often used to identify important features for classification.
  • Prior Research:

    • LeCun et al. (1989): Pioneered the use of CNNs for image classification tasks, laying the groundwork for modern deep learning.
    • Krizhevsky et al. (2012): Achieved state-of-the-art results on the ImageNet dataset using a deep CNN, demonstrating the potential of deep learning in computer vision.
    • Zeiler et al. (2011): Introduced deconvolutional networks, providing a method for visualizing the features learned by CNNs, which is foundational for the current research.

Methodology

  • Key Ideas:

    • Deconvolutional Network (DeconvNet): Utilized to project feature activations back to the input pixel space, revealing the stimuli that excite individual feature maps.
    • Multi-layer Feature Visualization: The approach visualizes the top activations across multiple layers, showing the hierarchical nature of features from simple edges to complex objects.
    • Occlusion Sensitivity Analysis: Systematically occludes parts of input images to assess the impact on classification, revealing the model's reliance on specific features.
  • Experiments:

    • Feature Visualization: Visualizations of feature maps across different layers, demonstrating how features evolve during training and their invariance to transformations.
    • Ablation Studies: Investigated the contribution of different layers to overall model performance, identifying critical layers for classification.
    • Generalization Tests: Evaluated the model's performance on datasets like Caltech-101 and Caltech-256 after retraining the softmax classifier, demonstrating transferability of learned features.
  • Implications: The methodology allows for deeper insights into model behavior, facilitating architecture improvements and enhancing understanding of feature extraction processes.

Findings

  • Outcomes:

    • Visualization techniques revealed that higher layers of the network capture more abstract features, while lower layers focus on basic structures.
    • The model architecture modifications based on visualization insights led to improved classification performance on ImageNet.
    • Occlusion experiments confirmed that the model relies on specific local features rather than global context for classification.
  • Significance: This research enhances the understanding of CNNs, moving beyond black-box models to interpretable systems that can be systematically improved.

  • Future Work: Suggested avenues include exploring more complex architectures, further investigating feature generalization across diverse datasets, and enhancing the interpretability of higher-level features.

  • Potential Impact: Advancements in model interpretability and performance could lead to more reliable applications of CNNs in critical areas such as medical imaging, autonomous driving, and security systems.
