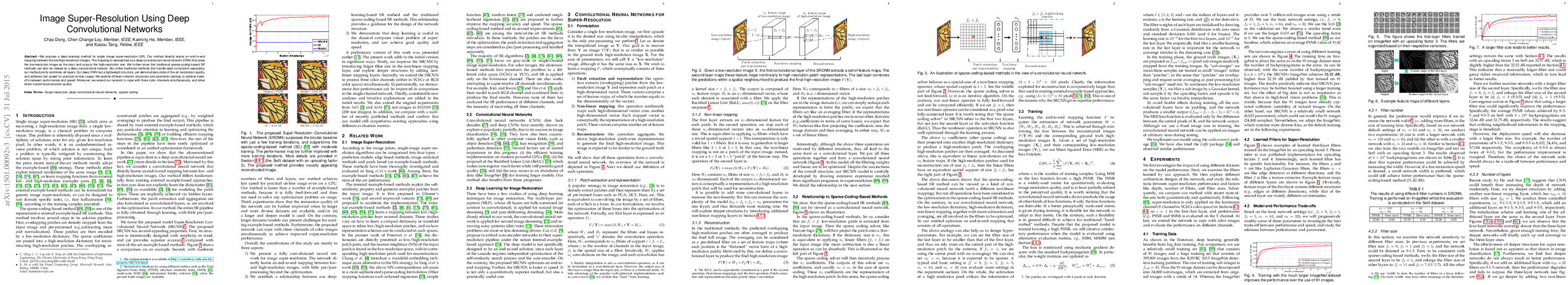

Image Super-Resolution Using Deep Convolutional Networks

Synopsis

Overview

• Keywords: Image Super-Resolution, Deep Learning, Convolutional Neural Networks, SRCNN, Sparse Coding
• Objective: Develop a deep learning method for single image super-resolution that learns an end-to-end mapping between low-resolution and high-resolution images.
• Hypothesis: The proposed deep convolutional neural network (CNN) can outperform traditional sparse-coding-based methods in image super-resolution tasks.
• Innovation: Introduction of a fully convolutional network structure that optimizes the entire super-resolution pipeline, integrating patch extraction, non-linear mapping, and reconstruction in a unified framework.

Background

• Preliminary Theories:

  • Sparse Coding: A method where images are represented as sparse combinations of basis functions, traditionally used in image processing tasks.
  • Example-Based Learning: Techniques that utilize pairs of low-resolution and high-resolution images to learn mapping functions for super-resolution.
  • Convolutional Neural Networks (CNNs): Deep learning architectures that excel in image processing tasks by learning hierarchical feature representations.
  • End-to-End Learning: A paradigm where the entire model is trained simultaneously, optimizing all components together rather than in isolation.

• Prior Research:

  • Freeman et al. (2002): Introduced example-based super-resolution, laying the groundwork for later methods.
  • Yang et al. (2010): Developed sparse coding methods for super-resolution, achieving state-of-the-art results at the time.
  • Dong et al. (2014): Proposed the SRCNN model, demonstrating the potential of deep learning in super-resolution, which significantly improved upon previous methods.

Methodology

• Key Ideas:

  • Patch Extraction: Overlapping patches are extracted from low-resolution images, forming the basis for feature representation.
  • Non-Linear Mapping: High-dimensional vectors representing patches are mapped non-linearly to high-resolution representations using convolutional layers.
  • Reconstruction: Aggregation of high-resolution patch representations to form the final output image, leveraging convolutional operations for efficiency.

• Experiments:

  • Datasets: Utilized various datasets including Set5, Set14, and BSD200 for training and evaluation.
  • Metrics: Performance evaluated using Peak Signal-to-Noise Ratio (PSNR), Structural Similarity Index (SSIM), and other perceptual quality metrics.
  • Ablation Studies: Explored the impact of network depth, filter sizes, and training data size on performance.

• Implications: The methodology allows for rapid and efficient image super-resolution, demonstrating that deep learning can simplify and enhance traditional image processing techniques.

Findings

• Outcomes:

  • The SRCNN model consistently outperformed traditional methods, achieving higher PSNR and SSIM scores across various datasets.
  • Larger filter sizes and deeper network structures improved performance, though with diminishing returns and increased computational costs.
  • The model effectively handles color images by processing all three channels simultaneously, leading to better overall reconstruction quality.

• Significance: The research established deep learning as a viable and superior alternative to traditional sparse coding methods in the domain of image super-resolution, challenging existing beliefs about the limitations of neural networks in low-level vision tasks.

• Future Work: Suggested exploration of more complex network architectures, training on larger datasets, and application of the SRCNN framework to other image processing tasks such as denoising and deblurring.

• Potential Impact: Advancements in image super-resolution could significantly enhance applications in photography, video processing, and computer vision, providing clearer and more detailed images from lower-quality sources.
