Spatial Transformer Networks
Abstract: Convolutional Neural Networks define an exceptionally powerful class of models, but are still limited by the lack of ability to be spatially invariant to the input data in a computationally and parameter efficient manner. In this work we introduce a new learnable module, the Spatial Transformer, which explicitly allows the spatial manipulation of data within the network. This differentiable module can be inserted into existing convolutional architectures, giving neural networks the ability to actively spatially transform feature maps, conditional on the feature map itself, without any extra training supervision or modification to the optimisation process. We show that the use of spatial transformers results in models which learn invariance to translation, scale, rotation and more generic warping, resulting in state-of-the-art performance on several benchmarks, and for a number of classes of transformations.

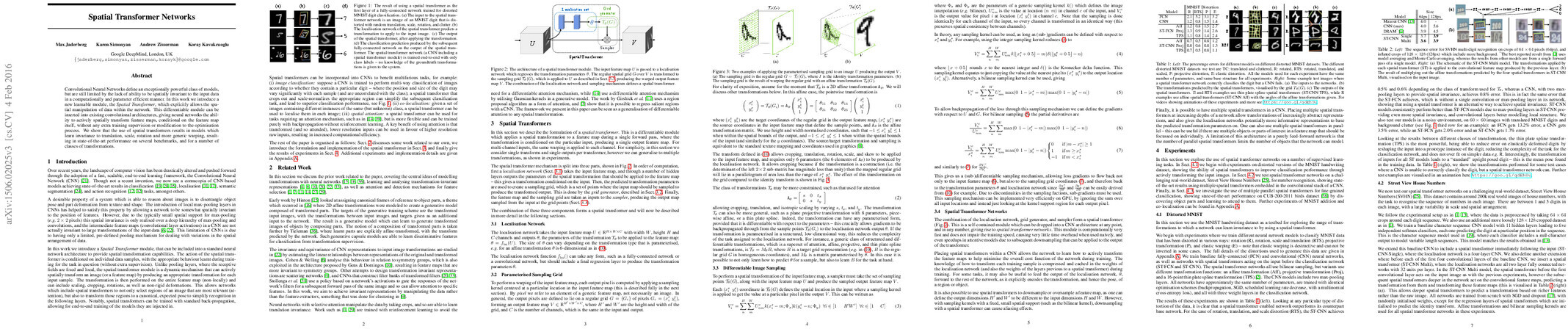

Preview
Synopsis
Overview
- Keywords: Spatial Transformer Networks, Convolutional Neural Networks, Image Transformation, Invariance, Deep Learning
- Objective: Introduce a learnable module, the Spatial Transformer, that enables spatial manipulation of data within neural networks.
- Hypothesis: The integration of spatial transformers into CNNs will enhance their ability to learn invariance to various transformations such as translation, scale, and rotation.
- Innovation: The spatial transformer module allows dynamic, input-dependent transformations of feature maps, facilitating improved performance on tasks requiring spatial invariance without additional supervision.
Background
Preliminary Theories:
- Convolutional Neural Networks (CNNs): A class of deep learning models particularly effective for image processing, but limited in spatial invariance capabilities.
- Spatial Invariance: The ability of a model to recognize objects regardless of their position, scale, or orientation in the input space.
- Attention Mechanisms: Techniques that allow models to focus on specific parts of the input, enhancing performance in tasks requiring localization and recognition.
- Transformations in Neural Networks: Prior work on learning transformations to create invariant representations, often requiring additional supervision or complex architectures.
Prior Research:
- Hinton et al. (2006): Introduced the concept of using transformations in neural networks to improve recognition tasks.
- Cohen & Welling (2016): Explored the invariance properties of CNNs concerning input transformations, emphasizing the need for improved architectures.
- Scattering Networks (2013): Proposed a method for achieving invariance through the use of wavelet transforms, laying groundwork for transformation-based approaches.
Methodology
Key Ideas:
- Localisation Network: A neural network that predicts transformation parameters based on the input feature map, allowing for dynamic transformations.
- Sampling Grid: A mechanism that defines how the input feature map is sampled to produce the transformed output, facilitating non-local transformations.
- Differentiable Sampling: Enables backpropagation through the spatial transformer, allowing for end-to-end training of the network.
Experiments:
- Distorted MNIST Dataset: Evaluated the performance of spatial transformers on various distortions (rotation, scaling, translation) to assess their ability to improve classification accuracy.
- Street View House Numbers (SVHN): Tested the spatial transformer networks on real-world data for digit recognition, demonstrating state-of-the-art results.
- Fine-Grained Classification: Used the CUB-200-2011 dataset to showcase the ability of spatial transformers to learn part detectors without additional supervision.
Implications: The design of spatial transformers allows for greater flexibility in neural network architectures, enabling them to learn more robust representations of input data.
Findings
Outcomes:
- Spatial transformer networks achieved state-of-the-art performance on the MNIST dataset, reducing classification error rates significantly compared to traditional CNNs.
- In fine-grained classification tasks, spatial transformers enabled the network to learn to focus on relevant parts of the input, improving accuracy.
- The use of multiple spatial transformers in parallel allowed for the effective modeling of multiple objects or parts within a single input.
Significance: This research demonstrates that spatial transformers can effectively enhance the capabilities of CNNs, addressing limitations in spatial invariance and enabling more sophisticated feature extraction.
Future Work: Further exploration of spatial transformers in recurrent neural networks and their application to 3D transformations, as well as potential integration with reinforcement learning frameworks.
Potential Impact: Advancements in spatial transformer technology could lead to improved performance in various computer vision tasks, including object detection, image segmentation, and video analysis, fostering the development of more intelligent and adaptable AI systems.
