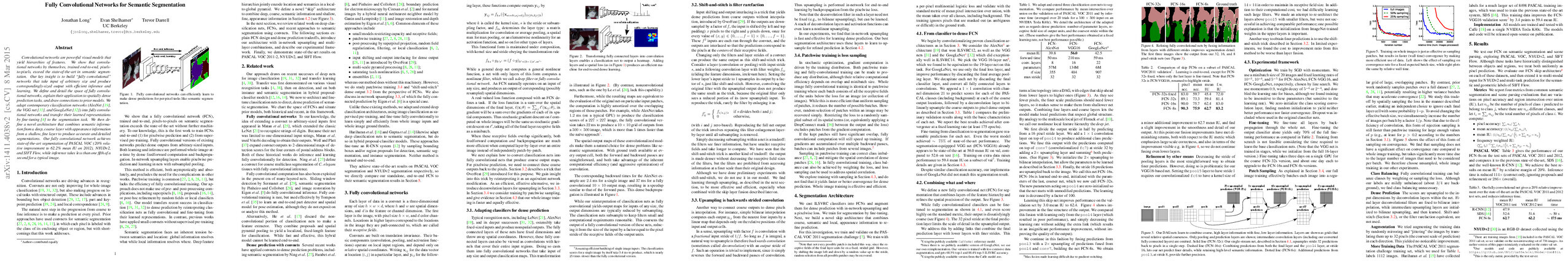

Fully Convolutional Networks for Semantic Segmentation

Synopsis

Overview

• Keywords: Fully Convolutional Networks, Semantic Segmentation, Deep Learning, Image Processing, Computer Vision
• Objective: To demonstrate that fully convolutional networks (FCNs) trained end-to-end can achieve state-of-the-art performance in semantic segmentation tasks.
• Hypothesis: Fully convolutional networks can effectively predict dense outputs from arbitrary-sized inputs without the need for complex pre- and post-processing techniques.
• Innovation: Introduction of a novel architecture that combines semantic information from deep layers with appearance information from shallow layers, enabling detailed and accurate segmentations.

Background

• Preliminary Theories:

  • Convolutional Neural Networks (CNNs): A class of deep learning models that utilize convolutional layers to automatically learn spatial hierarchies of features from images.
  • Semantic Segmentation: The task of classifying each pixel in an image into a category, requiring both global context and local detail.
  • Transfer Learning: The process of leveraging pre-trained models on new tasks, which enhances performance and reduces training time.
  • Skip Connections: Architectural features that allow gradients to flow through networks more effectively, facilitating the training of deeper models.

• Prior Research:

  • 2012: Introduction of deep CNNs for image classification, notably AlexNet, which significantly improved accuracy on benchmark datasets.
  • 2014: VGGNet and GoogLeNet further advanced the state of image classification, emphasizing deeper architectures and more complex structures.
  • 2015: Initial attempts at applying CNNs to semantic segmentation, but often with limited success due to reliance on patch-based methods and lack of end-to-end training.

Methodology

• Key Ideas:

  • Fully Convolutional Networks (FCNs): Adaptation of existing CNN architectures to produce dense output maps by replacing fully connected layers with convolutional layers.
  • In-Network Upsampling: Use of deconvolution layers to upsample feature maps, allowing for pixel-wise predictions that maintain spatial dimensions.
  • Skip Architecture: A design that combines features from different layers to balance semantic context and spatial precision, improving segmentation detail.

• Experiments:

  • Evaluation on standard datasets such as PASCAL VOC, NYUDv2, and SIFT Flow.
  • Metrics used include mean Intersection over Union (mIoU), pixel accuracy, and frequency-weighted IU.
  • Comparison of various FCN architectures (FCN-32s, FCN-16s, FCN-8s) to assess performance improvements.

• Implications: The methodology allows for efficient training and inference, significantly reducing computational costs while achieving high accuracy in segmentation tasks.

Findings

• Outcomes:

  • FCNs achieved state-of-the-art performance on PASCAL VOC with a mean IU of 62.7%, representing a 20% relative improvement over previous methods.
  • The architecture effectively recovered fine structures and improved segmentation of closely interacting objects.
  • Inference time was drastically reduced, with FCN-8s processing images in approximately 175 ms.

• Significance: This research established FCNs as a powerful tool for semantic segmentation, demonstrating that traditional classification networks can be effectively repurposed for dense prediction tasks.

• Future Work: Exploration of multi-modal inputs, such as combining RGB and depth data, and further refinement of architectures to enhance performance on more complex datasets.

• Potential Impact: Advancements in FCN architectures could lead to significant improvements in applications such as autonomous driving, medical imaging, and augmented reality, where precise pixel-level understanding is crucial.
